DNA Size Selection for Next-Gen Sequencing, with Pulsed-Field
(100bp – 50kb)
Size-Select DNA Fragments up to 50kb
Collect HMW DNA with High-Pass Filtering
The BluePippin has the DNA capabilities of the Pippin Prep, plus the extra benefit of pulsed-field electrophoresis for resolving and collecting high molecular weight DNA. For long-range genomic applications, high-pass filtering allows users to collect all fragments above a size threshold set by the user.
Target sizes or ranges of sizes are entered in software, and fractions are collected in buffer. Up to 5 samples/gel cassette may be run, with no possibility of cross contamination.
Benefits of the BluePippin System
- Saves time and effort compared to manual gel purification
- Sample-to-sample reproducibility streamlines research
- Higher sample quality improves downstream analysis
Key Downstream Technologies
- Mate-pair sequencing
- Single molecule sequencing
- Bar-coded linked reads
Pre-Cast Agarose Gel Cassettes for DNA Size Selection
Gel cassettes for DNA selections are available in four agarose concentrations to provide a full range of size selection options between 100bp up to 50kb. For smaller fragment sizes, internal standards may be used for higher accuracy and increased sample capacity (from 4 to 5 samples/cassette). Higher molecular weight fragments require a dedicated lane to run a calibration marker. Run times are as little as 30 minutes, To resolve very large DNA fragments, pulsed-field runs may last several hours. View the BluePippin cassette reference chart to explore the DNA size selection options and run times.
Gel Cassette Types and Target Ranges
- 3% agarose, 100-250bp
- 2% agarose, 100-600bp
- 1.5% agarose, 250bp – 1.5kb
- 0.75% agarose, 1-50kb
- miRNA isolation
- DNA sequencing, RNA-seq, genotyping
- DNA sequencing, ChIP-seq
- Mate-pair, single molecule
See the Workflow Summary.

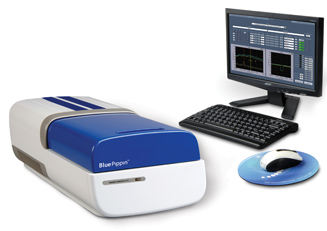

The BluePippin instrument includes a monitor, keyboard, and mouse. A CPU is built in; an external PC is not required.
|Blue Pippin Specs|
|Electrophoresis voltage||25V, 100V or 150V constant, 100V pulsed field|
|Optical detection||470 nm excitation, 525 nm emission|
|Power requirements||100-240 VAC, 2.5 A, 50-60 Hz|
|Weight||15 lbs / 7 kg|
|Dimensions||7h x 11w x 21d (in) | 18h x 28w x 53 d (cm)|
Kits include 10 ea. disposable pre-cast gel cassettes. All necessary standards and reagents are included with the purchase.
